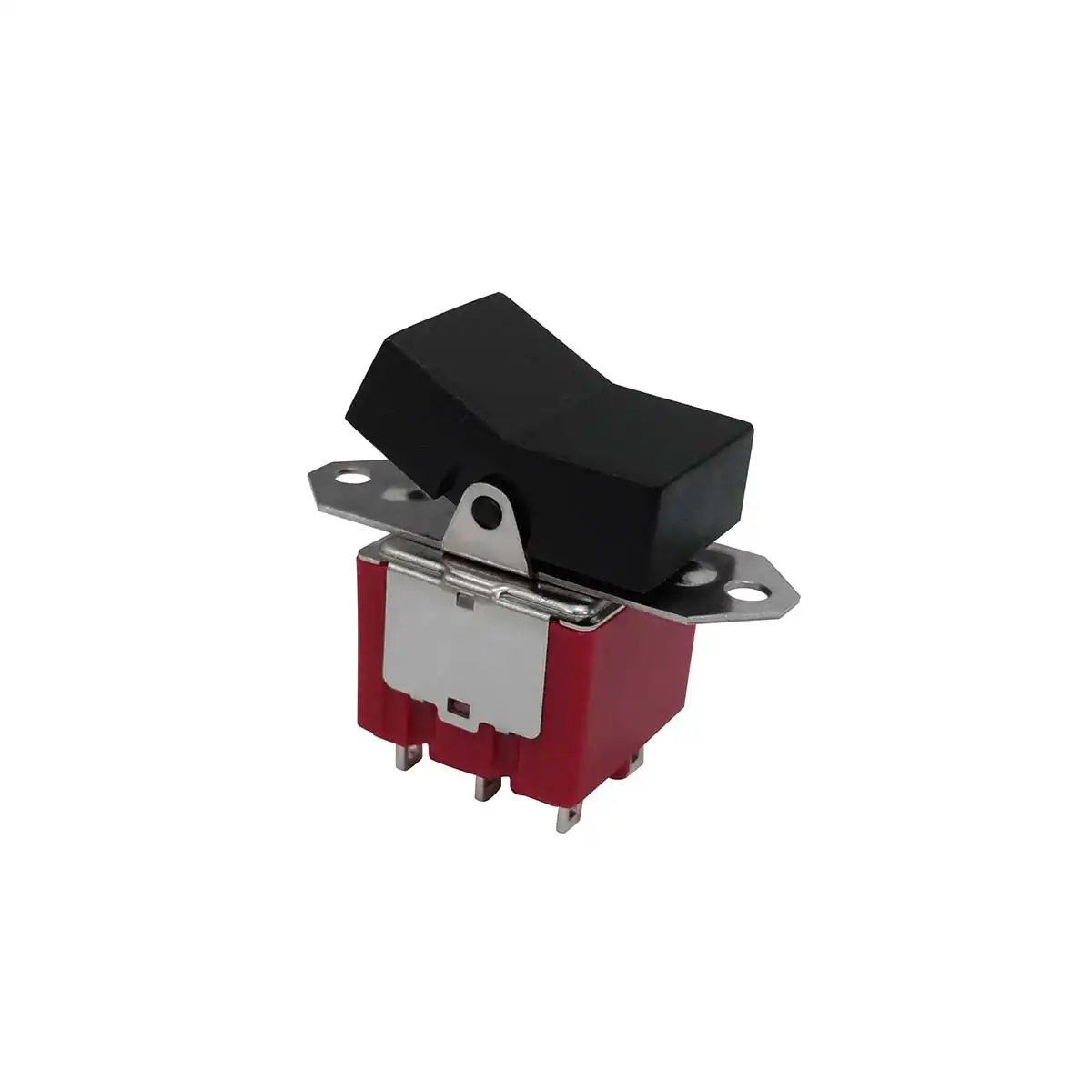

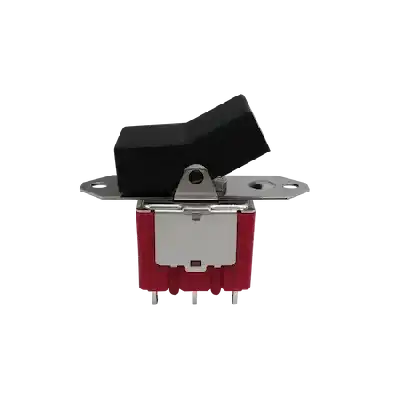

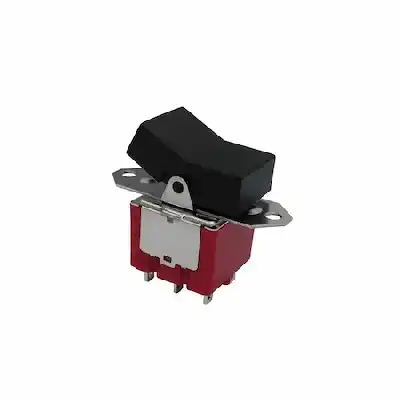

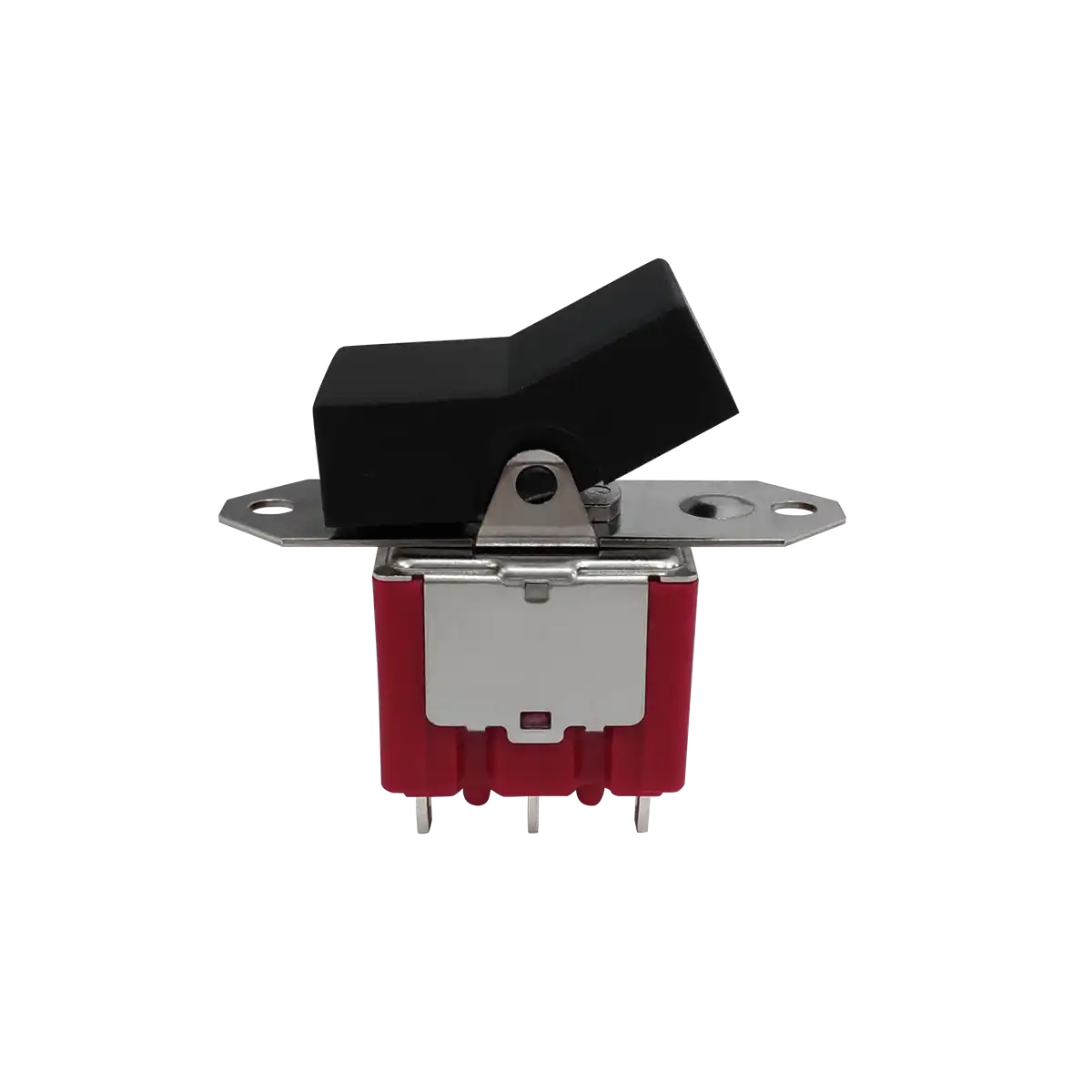

Rocker Switches - Series 300NMiniature Rocker Switch

Rating : 6A/250VAC, 10A/125VAC, 6A/48VDC

UL 61058

ON-ON, ON-OFF-ON, (ON)-OFF-(ON)

Life Cycle: 50,000 cycles

Robust for demanding environments

Inquiry

CONTACT RATING :
Refer to "Contact Material Options" for more info.

ELECTRICAL LIFE :
50,000 make-and-break cycles at full load.

CONTACT RESISTANCE :
10mΩ max. inital.

INSULATION RESISTANCE :
1,000ΜΩ min.@500VDC.

DIELECTRIC STRENGTHS :
2,000V RMS @ sea level.

OPERATING TEMPERATURE :
-30°C to +85°C.

CASE :
Diallyl phthalate (DAP)(UL 94V-0).

ROCKERS :
Nylon 6/6 or ABS.

BUSHING :
Zinc, nickel plated.

HOUSING :
Stainless steel.

FRONT/REAR MOUNTING :
Stainless steel.

SWITCH SUPPORT :
Brass, tin plated.

TERMINAL SEAL :
Epoxy.

Machinery & Material handling

Sea & Aero

Industrial equipment

Telecommunication and networking

Solar Energy

Series 300N Miniature Rocker Switch
