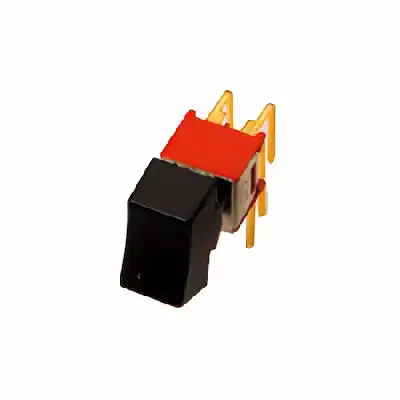

Rocker Switches - Series 400Subminiature Rocker

3A 125VAC, 1.5A 250VAC or 0.4VA @ 20VDC / VAC

3A Power Level & 0.4VA Logic Level, available in SPDT & DPDT, a variety of options for actuator and terminal. UL and CSA approvals

Inquiry

CONTACT RATING :
Refer to "Contact Material Options" for more info.

ELECTRICAL LIFE :
30,000 make-and-break cycles at full load.

CONTACT RESISTANCE :
20mΩ max. initial @ 2-4 VDC
100mA for both silver and gold plated contacts.

INSULATION RESISTANCE :
1,000ΜΩ min.

DELECTRIC STRENGTH :
1,500 V RMS @ sea level.

OPERATING TEMPERATURE :
-30°C to +85°C.

CASE :
Diallyl phthalate(DAP)(UL 94V-0).

ROCKER :
Nylon 6/6 (UL 94V-0).

BUSHING :
Zinc, nickel plated.

HOUSING :
Stainless Steel.

SWTCH SUPPORT :
Brass, tin plated.

TERMINAL SEAL :
Epoxy.

Telecommunication and Networking

Instrumentation

Medical equipment

Series 400 Subminiature Rocker
