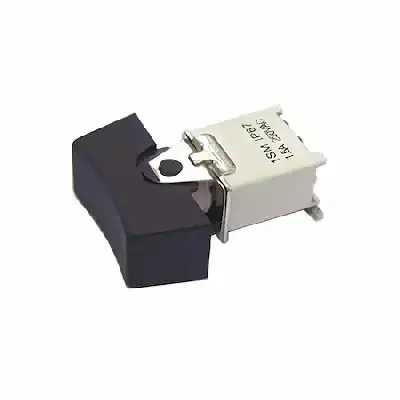

Rocker Switches - Series 400BSubminiature SMD IP67 Rocker

3A 125VAC, 1.5A 250VAC or 0.4VA @ 20VDC / VAC

3A Power Level & 0.4VA Logic Level, surface mount with a variety of terminal options, IP67 Process Sealed

Inquiry

CONTACT RATING :
Refer to "Contact Material Options" for more info.

ELECTRCAL LIFE :
30,000 make-and-break cycles at full load.

CONTACT RESISTANCE :
20mΩ max. initial @2-4 VDC
100mA, for both silver and gold plated contacts.

INSULATION RESISTANCE :
1,000ΜΩ min.

DIELECTRIC STRENGTH :
1500V RMS max. @ sea level.

OPERATING TEMPERATURE :
-30°C to +85°C.

CASE & BUSHNG :
PA46 or FR52, flame retardant, heat stabilized (UL 94V-0).

ROCKER :
PA46 (UL94V-0), black std.

ACTUATOR :
Brass, internal o-ring sealed (std).

SWITCH SUPPORT :
Brass (or Phosphor bronze), tin plated.

TERMINAL SEAL:
Epoxy.

Telecommunication and Networking

Instrumentation

Medical equipment

Series 400B Subminiature SMD IP67 Rocker
