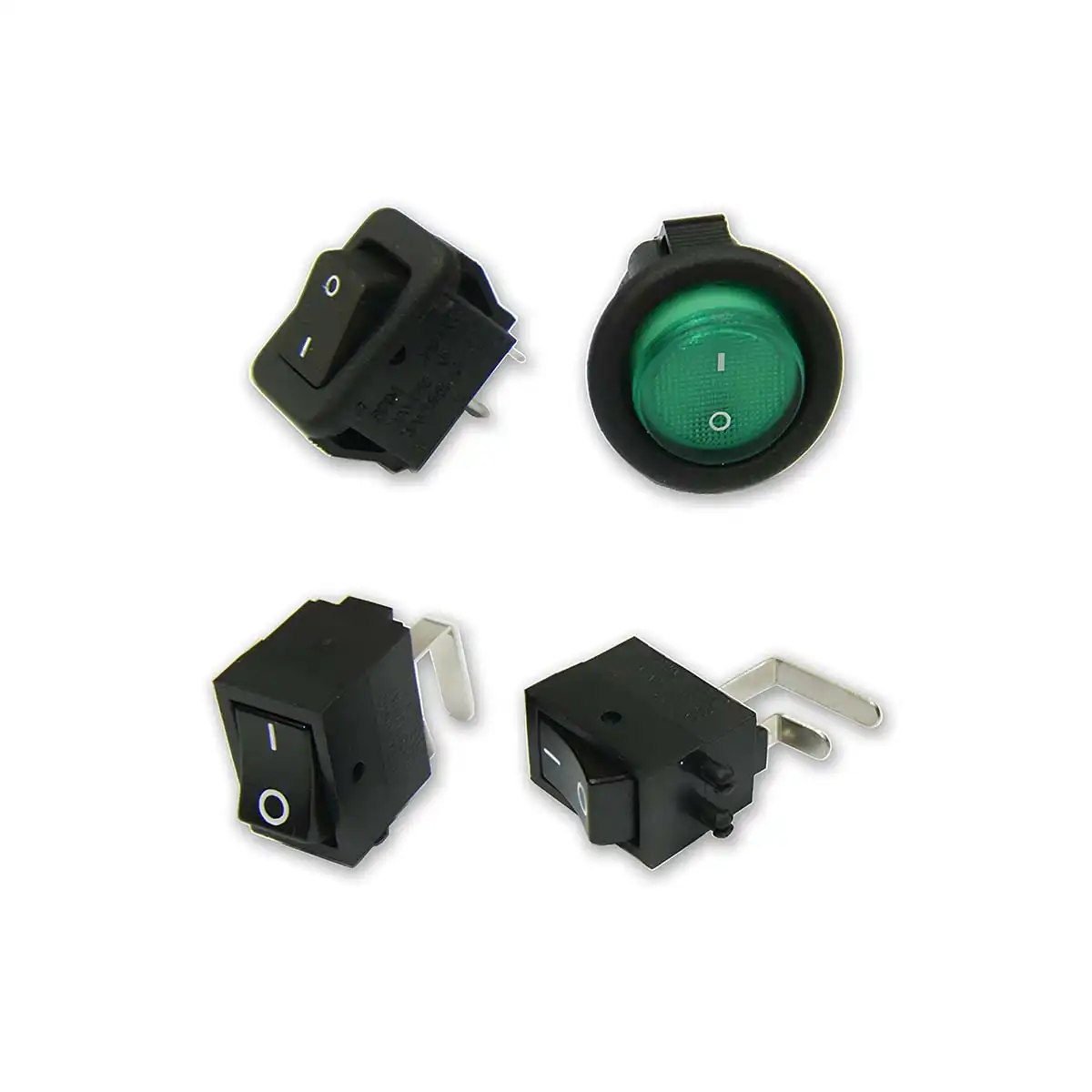

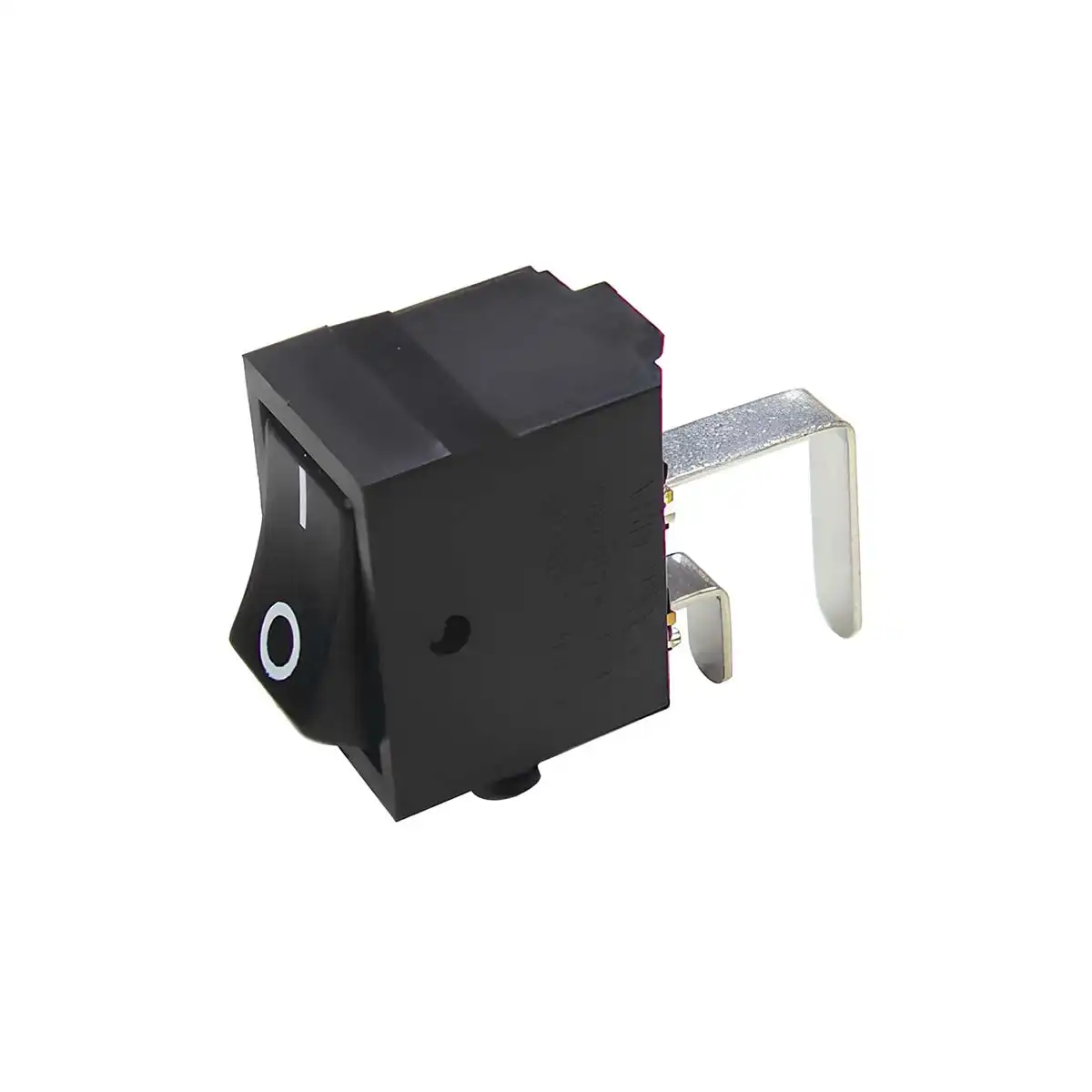

Rocker Switches - Series R19UUltraminiature Power Rocker

3A 250VAC, 6A 125VAC

Power Level with SPST and SPDT, compact size available in Snap-in Front and PC mount to save PCB space. CUL and ENEC approvals

Inquiry

CONTACT RATING :
3A 250VAC 6A 125VAC.

ELECTRICAL LIFE :
10,000 Operations.

MECHANICAL LIFE :
10,000 Operations min.

CONTACT RESISTANCE :
20m-omhs max.

INSULATION RESISTANCE :
500VDC, 100M-ohms min.

DIELECTRIC STRENGTHS :
1,000VAC for 1minute.

BODY :
Nylon 66 (UL 94V-2).

ACTUATOR :
Nylon 66 (UL 94V-2).

MOVABLE CONTACTS :
Copper, silver plated.

SPRING :
Piano wire.

TERMINALS :
Copper, silver plated.

Telecommunication and Networking

Household appliances (vacuum cleaners, food processor / blender)

Medical equipment

Off-road vehicles

Instrumentation
