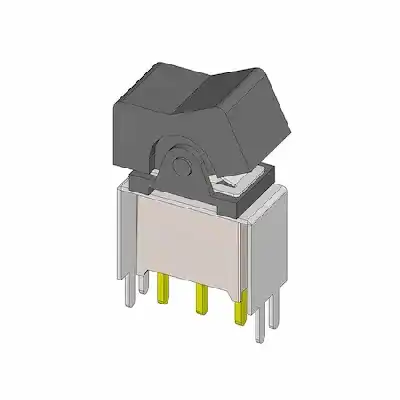

Rocker Switches - Series 300CMiniature IP55 Rocker

2A 250VAC, 5A 125VAC or 0.4VA @ 20VDC / VAC

5A Power Level & 0.4VA Logic Level, from SPDT to 3PDT, IP55 sealing and soldering process sealed, UL and CUL approvals

Inquiry

CONTACT RATING :
Refer to "Contact Material Options" for more info.

ELECTRICAL LIFE :
50,000 make-and-break cycles at full load.

CONTACT RESISTANCE :
10mΩ max. initial @2-4VDC.
100mA, for both silver and gold plated contacts.

INSULATION RESISTANCE :
1,000ΜΩ min.

DIELECTRIC STRENGTH :
1500V RMS @ sea level.

OPERATING TEMPERATURE :
-30°C to +85°C.

CASE & BUSHING :
PA9T or FR52, flame retardant, heat stabilized (UL 94V-0).

ACTUATOR :
Nylon, black std, internal o-ring sealed (300A).

ACTUATOR :
Nylon, black std (300C).

PANEL REAR MOUNT :
Nylon, black std.

SWITCH SUPPORT :
Brass, tin plated.

ACTUATOR PIVOT & MOUNTING BRACKET :
Nylon, black std.

ACTUATOR PIVOT RETAINER :
Stainless steel.

TERMINAL SEAL :
Epoxy.
