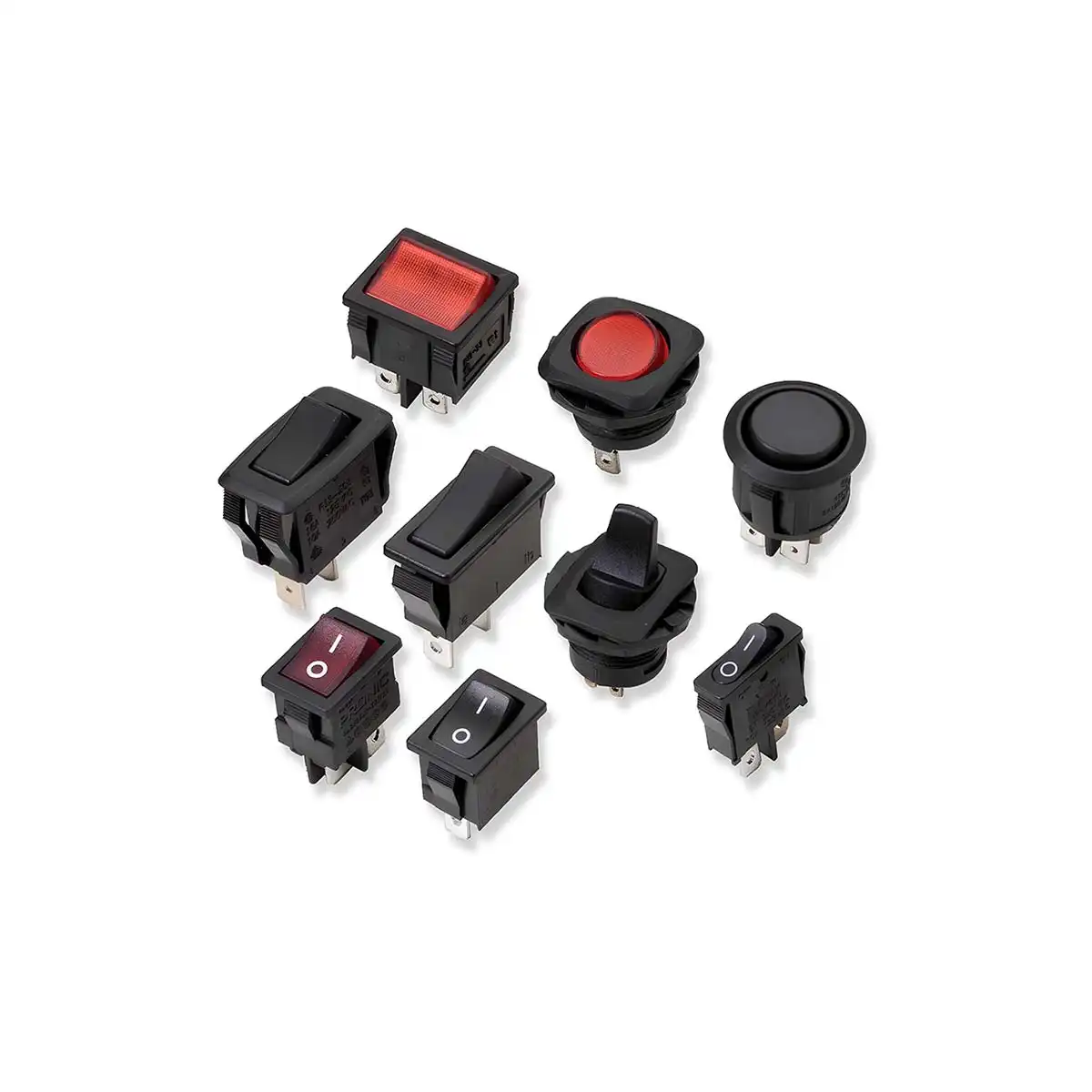

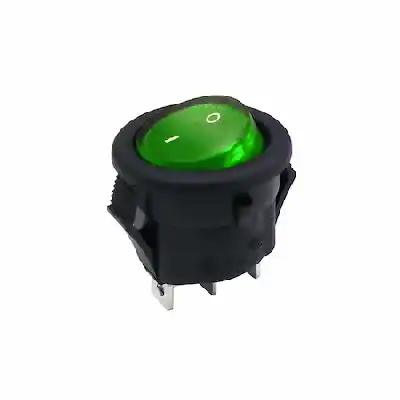

Rocker Switches - Series R19Power Rocker

With multi-pole multi-position, momentary and latching models, rated up to 16A 250VAC

5A-16A Power Level, from SPST to DPDT, Snap-in Mount, PCB through-hole with non-illuminated and illuminated actuator options

Inquiry

CONTACT RATING :
6A 250VAC 10A 125VAC.

ELECTRICAL LIFE :
10,000 Operations.

MECHANICAL LIFE :
50,000 Operations.

CONTACT RESISTANCE :
<20m-omhs.

INSULATION RESISTANCE :
>1,000M-ohms.

DIELECTRIC STRENGTHS :
> 1,500 volts 1min.
>3,000 Volts between poles.

HOUSING :
66 Nylon (UL 94V-2).

ACTUATOR :
66 Nylon (UL 94V-2).

MOVABLE CONTACTS :
Copper, silver plated.

STATIONARY CONTACTS :
Copper, silver plated.

TERMINALS :
Copper, silver plated.

CONTACT SPRING :
Piano wire.

Household appliances

Medical equipment

Instrumentation

Industrial equipmen

Series R19 Power Rocker
